Inflatable Gasket

Inflatable Gasket

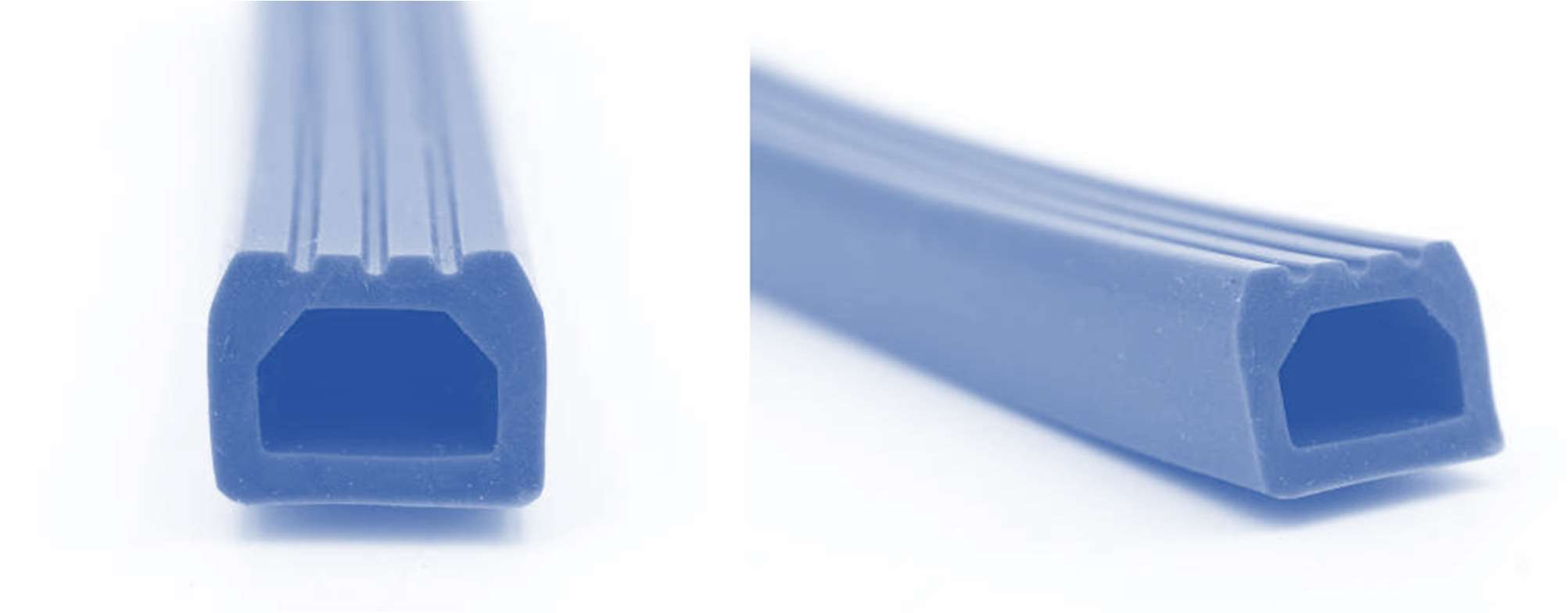

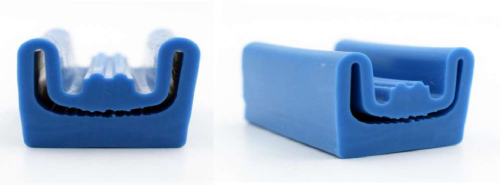

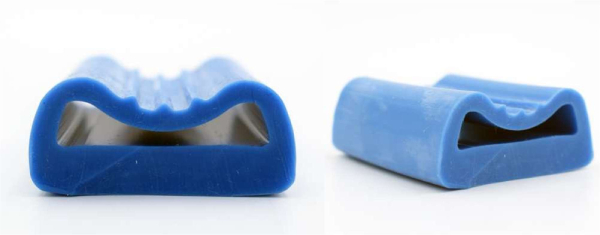

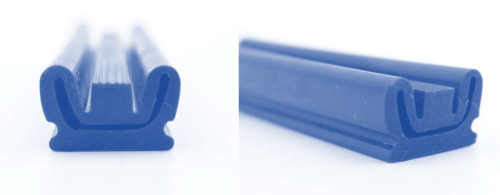

Our rubber inflatable seals are the perfect product for a variety of applications where it is important to seal two surfaces that move in relation to each other. Air-inflated gaskets, i.e. pneumatic gaskets and seals, are the most efficient sealing method for moving surfaces since they shrink and stretch at the specified degree.

Inquire Now Catalogue
  • More Info

Application :

  • Food industry (autoclaves, chambers, cutters)
  • Paper industry (suction rollers, scraper bars, cutters)
  • Transport (door seals on high-speed trains, transport containers)
  • Pharmacy (mixers, robotics, autoclaves, ovens, clean and sterile rooms)
  • Textile industry (clamping, door seals of pressure chambers)
  • Chemical industry (processing equipment, mixers, hoppers, chutes, valves)
  • Metalworking industry (door seals, scraper bars, continuous steel casting, furnace sealing)
  • Shipbuilding (portholes, lift platforms, loading hatches, drive shaft maintenance)

Key Features :

  • FDA approved gasket, non-toxic and inert, food safe
  • High Strength, Soft flexible
  • Food grade, Medical grade, commercial grade available
  • Wide functioning temperature range
  • Very flexible and low friction coefficient
  • Extremely durable and resistant to tearing

Technical Data :

Physical Properties Test Method Units Typical Values
Specific Gravity DIN EN ISO 1183-1 A g/cm3 1.16
Hardness, Shore A D2240 SHORE A 60±5
Tensile strength psi(Mpa) D412 MPA 10
Elongation (%) D412 % 450
Tear Resistance, Die B lbf./in. (KN/m) D624 KN/M 25
Tensile Modulus @100%psi(Mpa) - - -
Temperature Rating - °C -40 TO 220
Compression set 22h@175°C ASTM D395 method B % 35
Properties Values Acid Resistance Values Resistance To Values
ASTM Designation (ASTM D14/18) VMQ Mild Dilute A Swelling In Lubricating Oil E
Tensile Strength >1200 Strong Concentrate D Oil And Gasoline D
Hardness (Shore A) 60° Solvent Resistance - Animal Oils C
Tear Resistance D Aliphatic Hydrocarbons E Water Absorption A
Abrasion Resistance E Aromatic Hydrocarbons E Oxidation A
Compression Set B Oxygenated (Keytones, etc) E Ozone A
Cold Resilience A -   Sunlight Aging A
Heat Resilience A -   Heat Aging O
Radiation Resistance C -   Low Temperature O
Impermeability To Gases D -   Flame D
        Vegetable Oils E
        Chlorinated Hydrocarbons E to D
A = Exceptional, B = Very Good, C = Good, D = Fair,E = Poor

INFLATABLE SEAL TYPE :

  • Castellated Seal Profiles
  • Unique Seal Profiles
  • Frog Leg Seal Profiles
  • Footed Snap Profiles
  • Stem/Foot Location Profiles
  • Channel Fit Profiles

CASTELLATED SILICONE INFLATABLE SEAL PROFILES

Key Features :

  • Intended for use in heavy duty applications
  • can seal against high differential Pressures
  • Commonly used in radial, axial and straight configurations
  • For applications with comparatively small Sealing gaps
  • Quick to inflate and deflate
  • Form a watertight seal on uneven surfaces
  • can be manufactured to your required length
  • FDA approved Compounds available excellent durability
  • Wide functioning temperature range

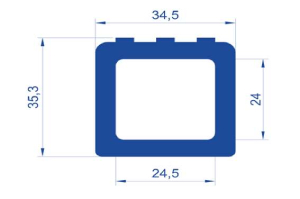

SET-IG1
Width Height Inflated Height
34.5mm 35.3mm 40mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 30 PSI 35 PSI

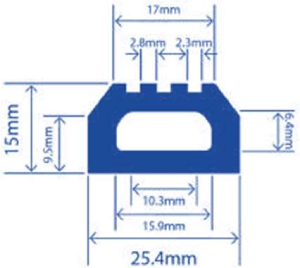

SET-IG2
Width Height Inflated Height
25.4mm 15mm 19mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

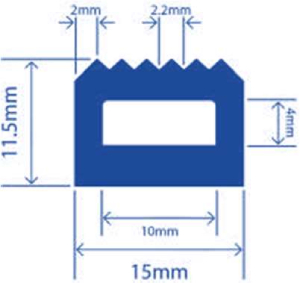

SET-IG3
Width Height Inflated Height
15mm 11.5mm 13.5mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

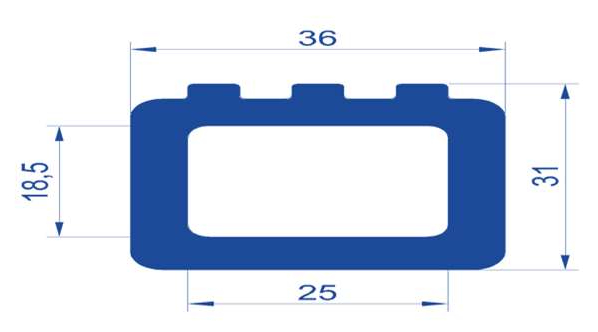

SET-IG4
Width Height Inflated Height
36mm 31mm 36mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 30 PSI 35 PSI

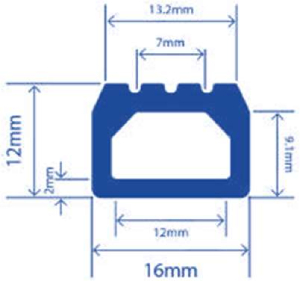

SET-IG5
Width Height Inflated Height
16mm 12mm 14mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 18 PSI

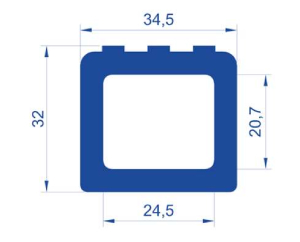

SET-IG6
Width Height Inflated Height
34.5mm 32mm 36.5mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 30 PSI 35 PSI

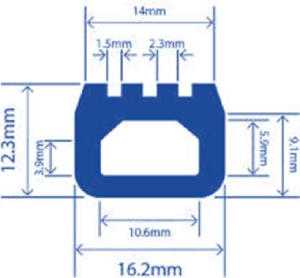

SET-IG7
Width Height Inflated Height
16.2mm 12.3mm 14mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

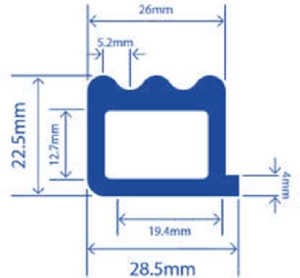

SET-IG8
Width Height Inflated Height
28.5mm 22.5mm 25.5mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 12 PSI

UNIQUE SILICONE INFLATABLE SEAL PROFILES

Key Features :

  • Good rates of inflation
  • Can be manufactured to customers specification
  • Quick to inflate and deflate
  • Form a watertight seal on uneven surfaces
  • Can be manufactured to your required length
  • FDA approved compounds available Excellent durability
  • Wide functioning temperature range

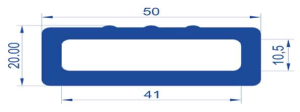

SET-IG9
Width Height Inflated Height
50mm 20mm 35mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 13 PSI

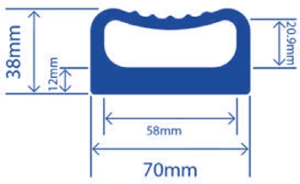

SET-IG10
Width Height Inflated Height
70mm 38mm 50mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 25 PSI 30 PSI

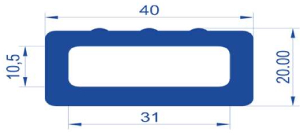

SET-IG11
Width Height Inflated Height
40mm 20mm 30mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 25 PSI 35 PSI

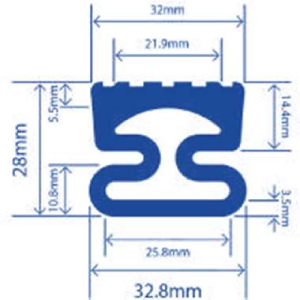

SET-IG12
Width Height Inflated Height
32.8mm 28mm 37mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

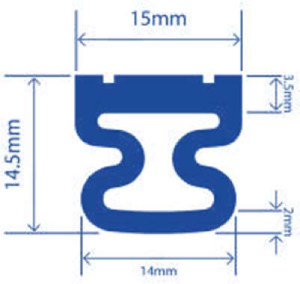

SET-IG13
Width Height Inflated Height
15mm 14.5mm 17mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

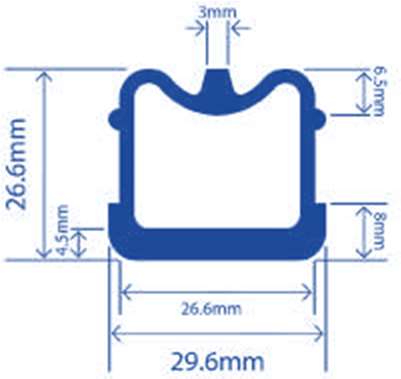

SET-IG14
Width Height Inflated Height
29.6mm 26.6mm 34mm
Min Pressure Recommended Pressure Max Pressure
4 PSI 5 PSI 8 PSI

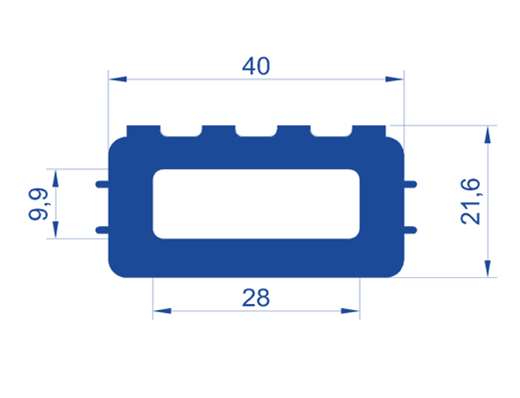

SET-IG15
Width Height Inflated Height
40mm 21.6mm 26mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 30 PSI 40 PSI

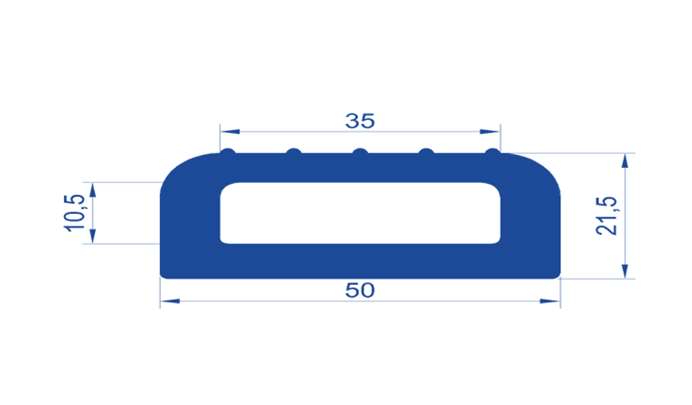

SET-IG16
Width Height Inflated Height
56mm 21.5mm 28mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

FROG LEG SILICONE INFLATABLE SEAL PROFILES

Key Features :

  • Specifically designed to fit square channels - Design allows for good rates of inflation
  • Quick to inflate and deflate
  • Form a watertight seal on uneven surfaces - Can be manufactured to your required length
  • FDA approved compounds available excellent durability
  • Wide functioning temperature range

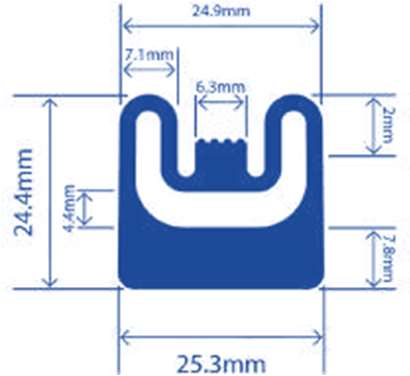

SET-IG17
Width Height Inflated Height
25.3mm 24.4mm 37mm
Min Pressure Recommended Pressure Max Pressure
15 PSI 20 PSI 25 PSI

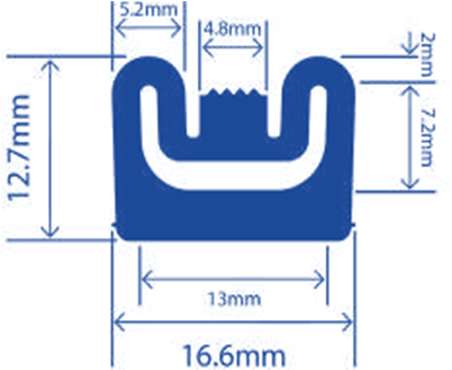

SET-IG18
Width Height Inflated Height
16.6mm 12.7mm 24mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

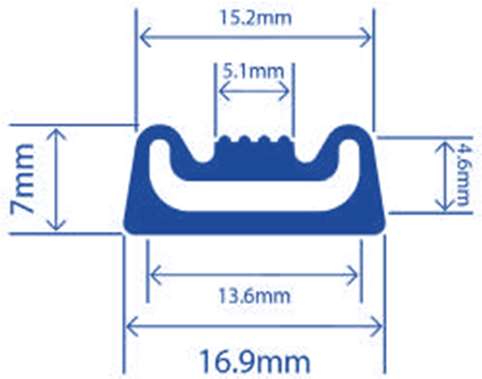

SET-IG19
Width Height Inflated Height
16.9mm 7mm 11mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 12 PSI 16 PSI

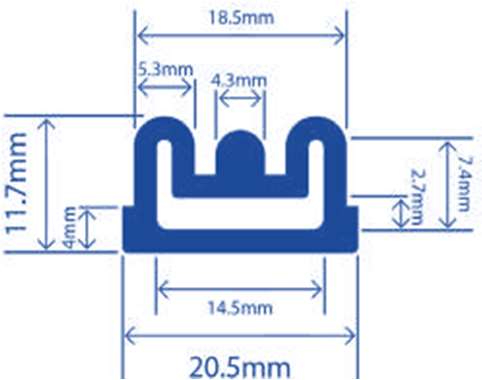

SET-IG20
Width Height Inflated Height
20.5mm 11.7mm 18mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

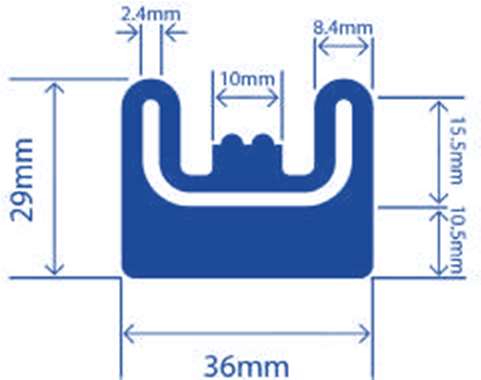

SET-IG21
Width Height Inflated Height
36mm 29mm 53mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 18 PSI

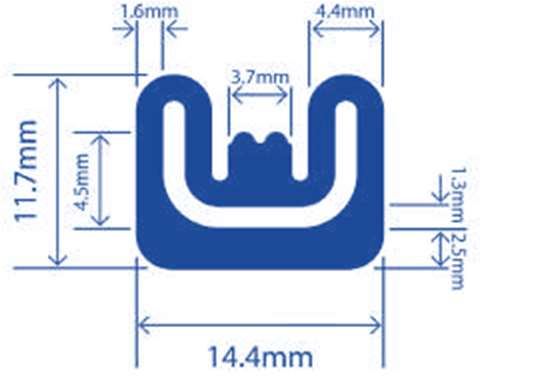

SET-IG22
Width Height Inflated Height
14.4mm 11.7mm 19.5mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 18 PSI

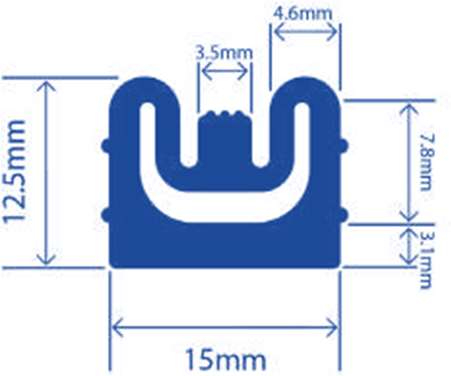

SET-IG23
Width Height Inflated Height
15mm 12.5mm 19mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

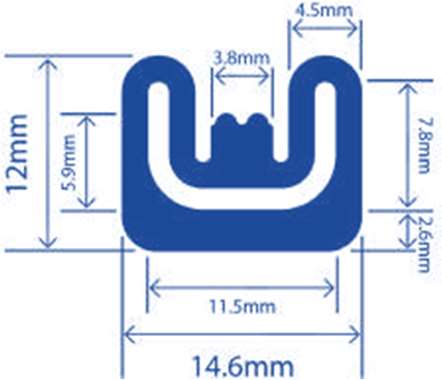

SET-IG24
Width Height Inflated Height
14.6mm 12mm 20.5mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 18 PSI

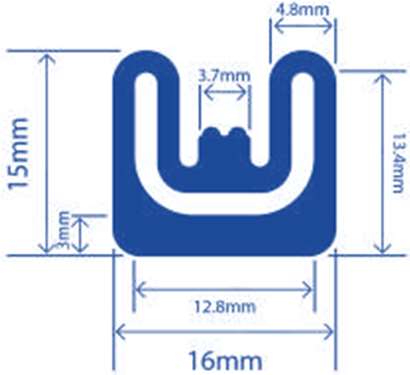

SET-IG25
Width Height Inflated Height
16mm 15mm 26mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

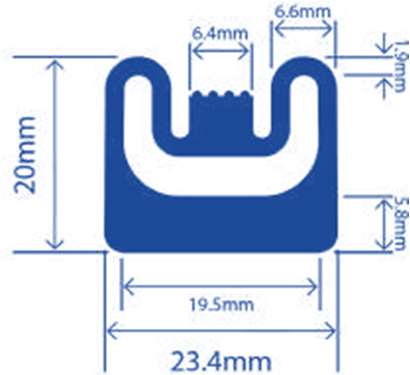

SET-IG26
Width Height Inflated Height
23.4mm 20mm 35mm
Min Pressure Recommended Pressure Max Pressure
18 PSI 20 PSI 25 PSI

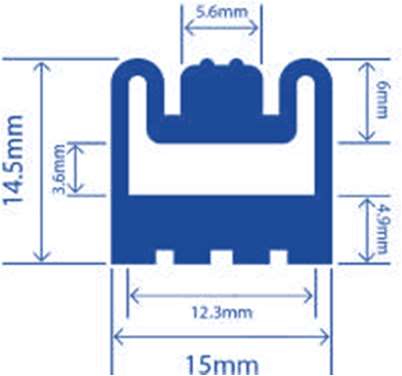

SET-IG27
Width Height Inflated Height
15mm 14.5mm 20mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

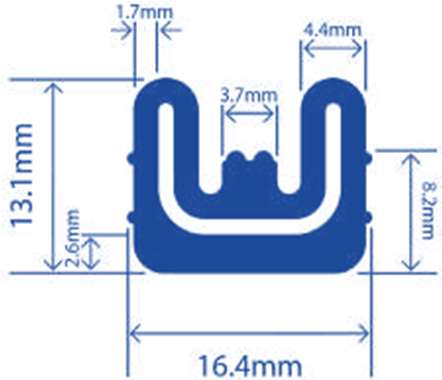

SET-IG28
Width Height Inflated Height
16.4mm 13.1mm 21mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

FOOTED SNAP SILICONE INFLATABLE SEAL PROFILES

Key Features :

  • Good rates of inflation relative to size
  • Dovetail base enables “snap fit” to mechanical retainers
  • Quick to inflate and deflate
  • Form a watertight seal on uneven surfaces - Can be manufactured to your required length - FDA approved compounds available Excellent durability
  • Wide functioning temperature range

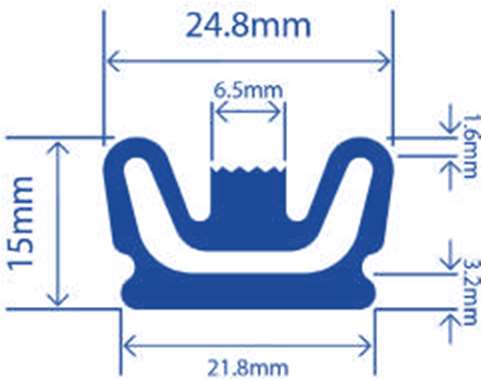

SET-IG29
Width Height Inflated Height
24.8mm 15mm 32mm
Min Pressure Recommended Pressure Max Pressure
15 PSI 20 PSI 25 PSI

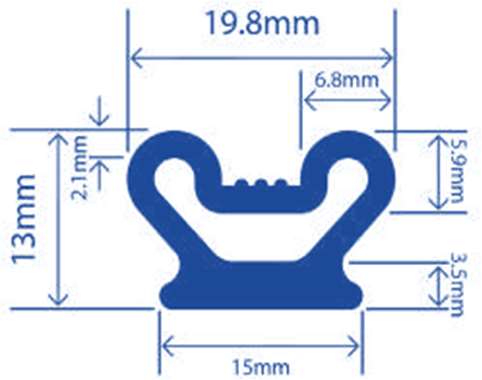

SET-IG30
Width Height Inflated Height
19.8mm 13mm 17mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 14 PSI

STEM/FOOT LOCATION SILICONE INFLATABLE SEAL PROFILES

Key Features :

  • Highly versatile seals
  • Easily fitted to a variety of mechanical retainers
  • Fully round when inflated creating a large expansion range
  • Suitable for use in radial, axial or straight applications
  • Can be manufactured to your required length
  • FDA approved compounds available excellent durability
  • Wide functioning temperature range

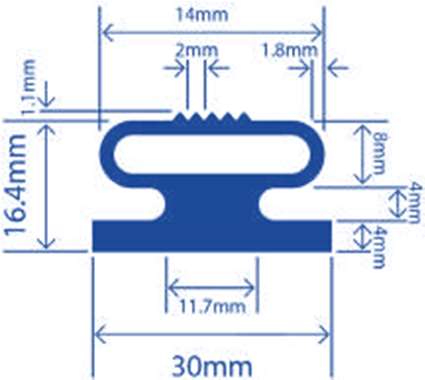

SET-IG31
Width Height Inflated Height
30mm 17.5mm 29.5mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

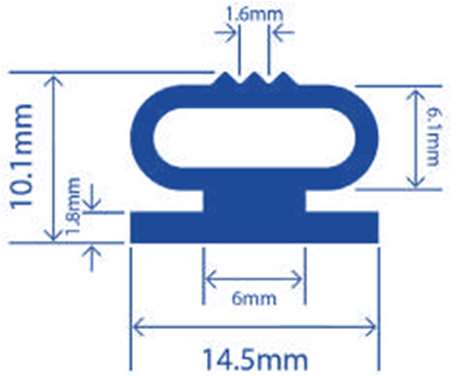

SET-IG32
Width Height Inflated Height
14.5mm 10.1mm 15mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

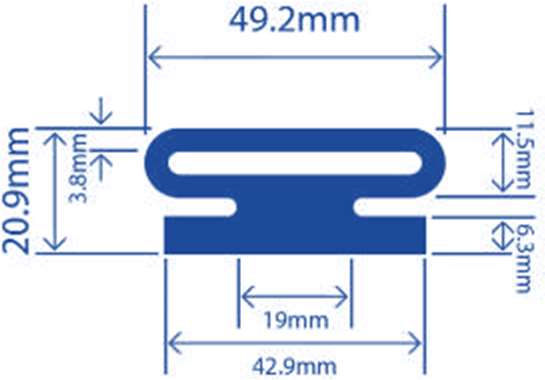

SET-IG33
Width Height Inflated Height
49.2mm 20.9mm 49mm
Min Pressure Recommended Pressure Max Pressure
15 PSI 20 PSI 25 PSI

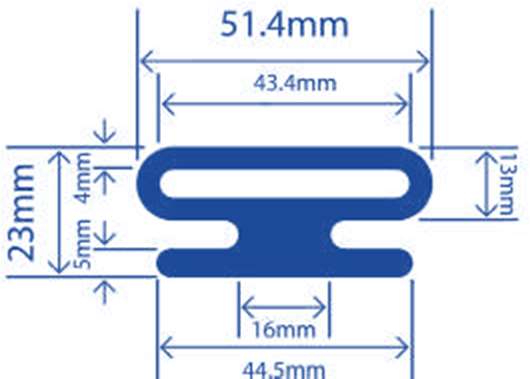

SET-IG34
Width Height Inflated Height
51.4mm 23mm 42mm
Min Pressure Recommended Pressure Max Pressure
15 PSI 20 PSI 25 PSI

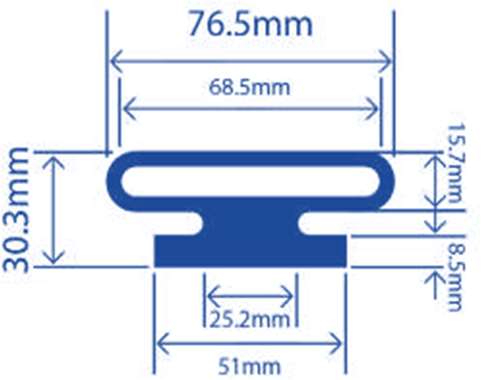

SET-IG35
Width Height Inflated Height
76.5mm 30.3mm 63mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

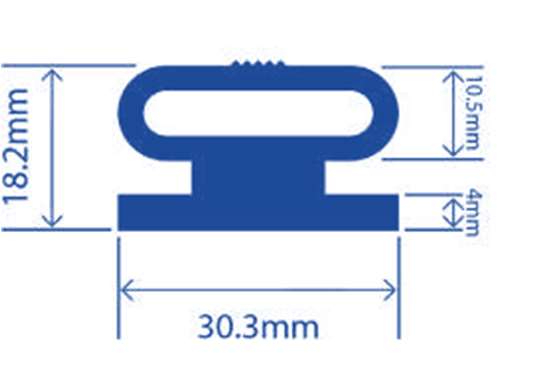

SET-IG36
Width Height Inflated Height
30.3mm 18.2mm 28mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

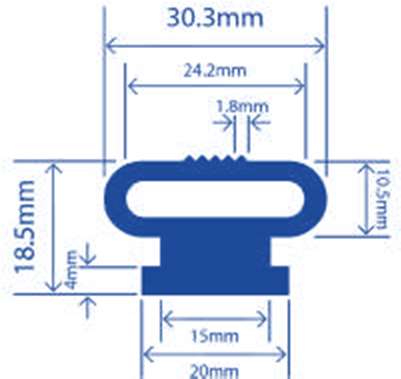

SET-IG37
Width Height Inflated Height
30.3mm 19.3mm 27mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

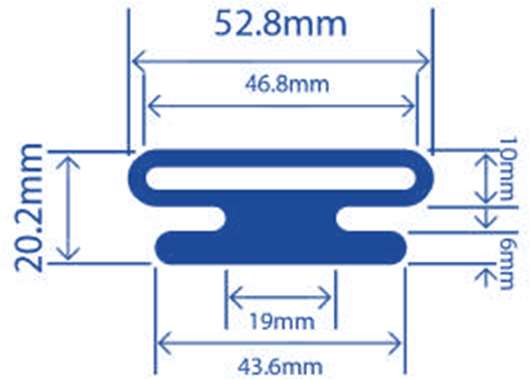

SET-IG38
Width Height Inflated Height
52.8mm 20.2mm 42mm
Min Pressure Recommended Pressure Max Pressure
20 PSI 25 PSI 30 PSI

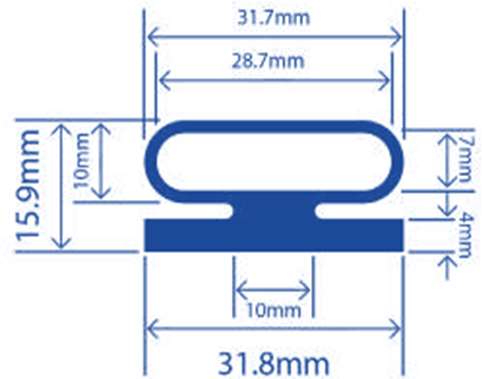

SET-IG39
Width Height Inflated Height
31.8mm 15.9mm 26mm
Min Pressure Recommended Pressure Max Pressure
5 PSI 8 PSI 12 PSI

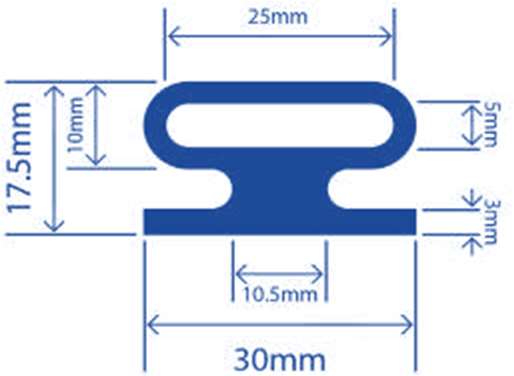

SET-IG40
Width Height Inflated Height
30mm 17.5mm 29mm
Min Pressure Recommended Pressure Max Pressure
8 PSI 10 PSI 15 PSI

CHANNEL FIT SILICONE INFLATABLE SEAL PROFILES

Key Features :

  • Large expansion coverage relative to width - Can be easily retained in a square channel - Suitable for outward and axial expansion
  • Quick to inflate and deflate
  • Can be manufactured to your required length
  • FDA approved compounds available excellent durability
  • Wide functioning temperature range

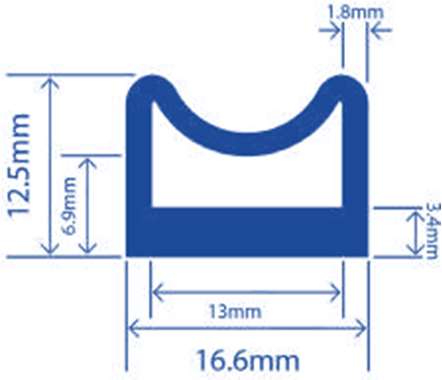

SET-IG4041
Width Height Inflated Height
16.6mm 12.5mm 18.5mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

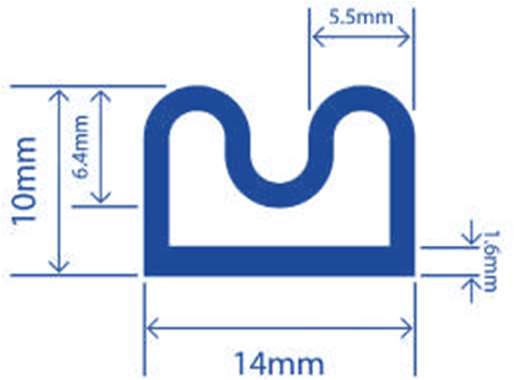

SET-IG42
Width Height Inflated Height
14mm 10mm 14.5mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 20 PSI

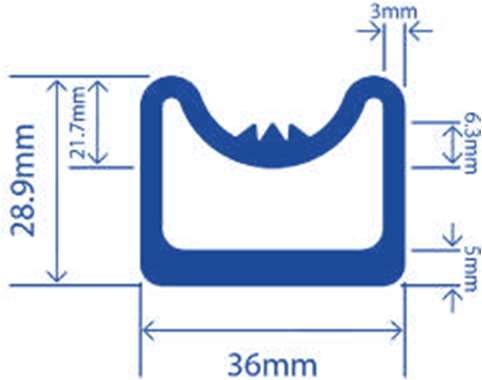

SET-IG43
Width Height Inflated Height
36mm 28.9mm 52mm
Min Pressure Recommended Pressure Max Pressure
15 PSI 20 PSI 25 PSI

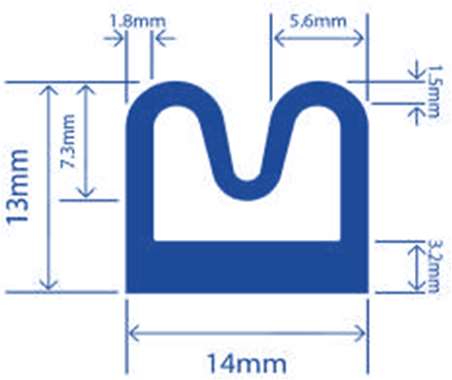

SET-IG44
Width Height Inflated Height
14mm 13mm 23mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 20 PSI 25 PSI

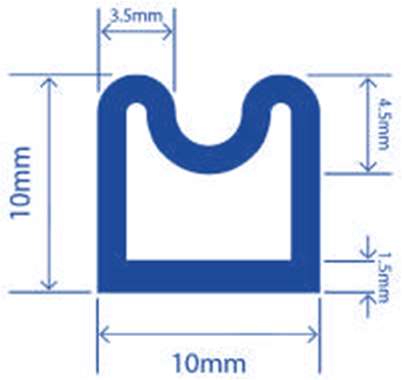

SET-IG45
Width Height Inflated Height
10mm 10mm 13mm
Min Pressure Recommended Pressure Max Pressure
5 PSI 8 PSI 10 PSI

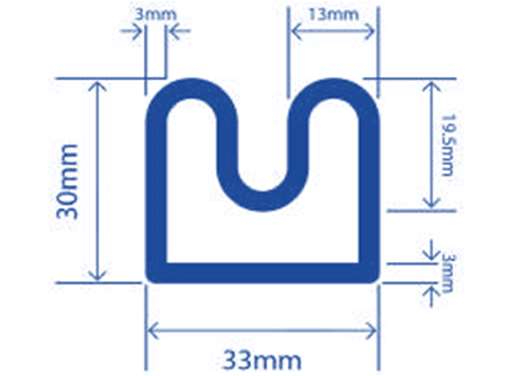

SET-IG46
Width Height Inflated Height
33mm 30mm 42mm
Min Pressure Recommended Pressure Max Pressure
15 PSI 20 PSI 25 PSI

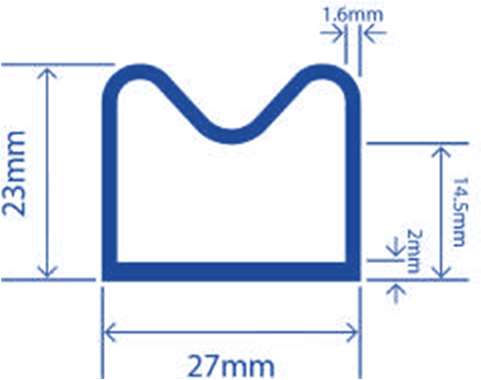

SET-IG47
Width Height Inflated Height
27mm 23mm 30mm
Min Pressure Recommended Pressure Max Pressure
5 PSI 8 PSI 15 PSI

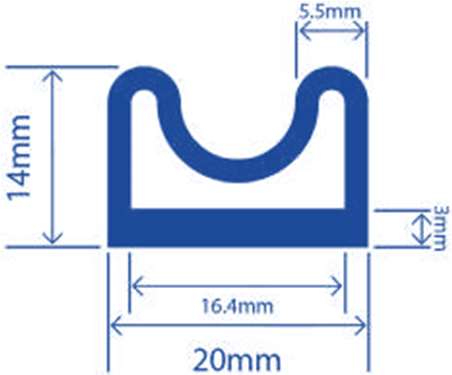

SET-IG48
Width Height Inflated Height
20mm 14mm 19mm
Min Pressure Recommended Pressure Max Pressure
5 PSI 5 PSI 10 PSI

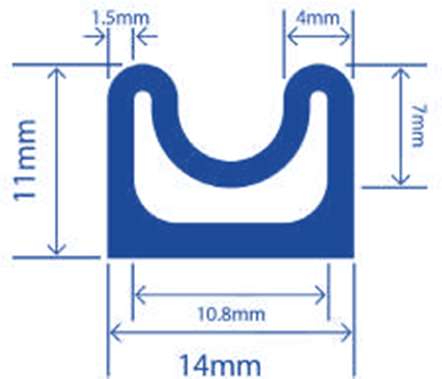

SET-IG49
Width Height Inflated Height
14mm 11mm 17mm
Min Pressure Recommended Pressure Max Pressure
10 PSI 15 PSI 18 PSI

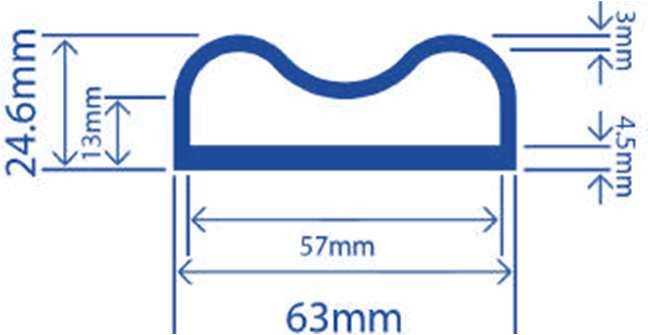

SET-IG50
Width Height Inflated Height
63mm 24.6mm 34mm
Min Pressure Recommended Pressure Max Pressure
5 PSI 5 PSI 10 PSI

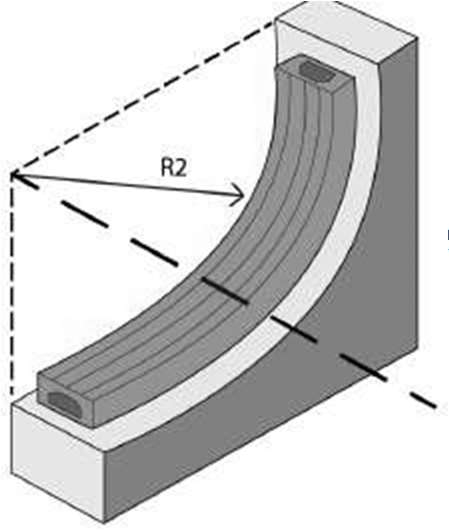

COMMON INFLATABLE SEAL CONFIGURATIONS

Our inflatable seals can be manufactured in a wide variety of shapes and sizes to suit your specific application. We can supply them in continuous loops, which expand radially inwards and outwards as well as axially depending on usage. Inflator seals can also be manufactured into axial expanding rectangles, “U” shapes or other similar shapes using pre-molded corners. The diagrams below demonstrate the different common seal configurations. The tables below show the minimum bend radii for radial inward, outward and axial expansion.

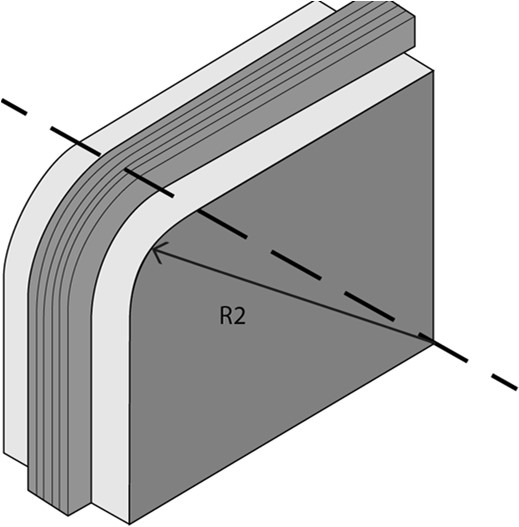

Radial Outward

In this configuration the profile inflates away from the Base of the seal. These profiles can be installed in a Number of different objects using clamps, inserted into A machined groove or stretch fitted. Common uses for This configuration includes: airlock door seals and drum Or bag filler seals.

Suitable Profile Types:

Castellated,Frog-leg,Fotted sanp,Stem/foot location,Channel fit

Radial Inward

This particular profile configuration is ideal for use in Clamping applications as well as shaft maintenance Seals and valve seals. These profiles typically Provide large inflating distances relative to their size. Frog- Leg profiles are generally not well suited for this

Suitable Profile Types:

Castellated,Stem/foot location

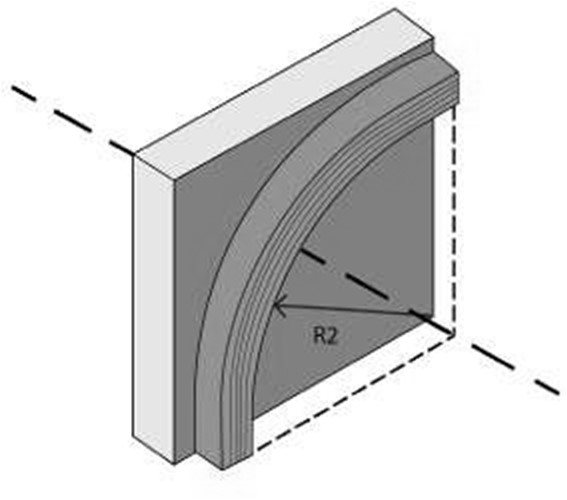

Axial

Axially configured inflator seals are able to Inflat in the Direction perpendicular to the Radius of the seal.This Particular Configuration is particularly popular for use In door and hatch seal

Suitable Profile Types:

Castellated,Frog-leg,Fotted sanp,Stem/foot location,Channel fit

AIR CONNECTOR OPTIONS FOR INFLATOR SEAL PROFILES

For seals joined into rings the air connector is most commonly joined to the base of the seal. For some castellated, channel fit and foot/stem location inflators, the air connectors may be placed in a side wall. However, this may have an adverse effect on the inflatable seal’s durability and overall life span. For straight length inflator seals, air connectors may be placed in either one end or both ends depending on the customer’s application or requirement.

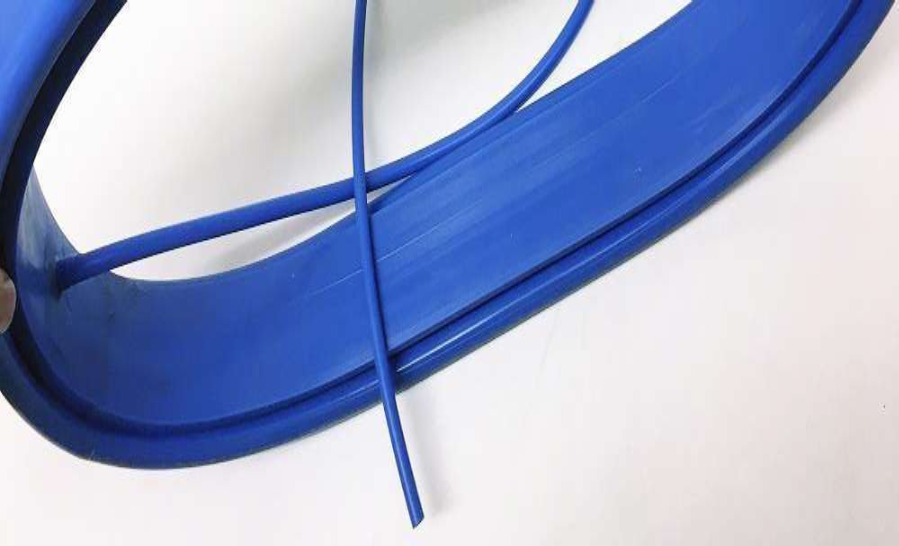

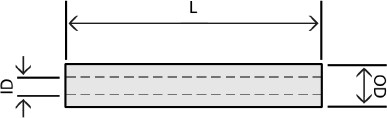

Silicone Hose

I/D O/D L
5mm 8mm 400mm
3mm 6mm 400mm
4mm 6mm 400mm
3.5mm 6.5mm 400mm
6mm 14mm 400mm

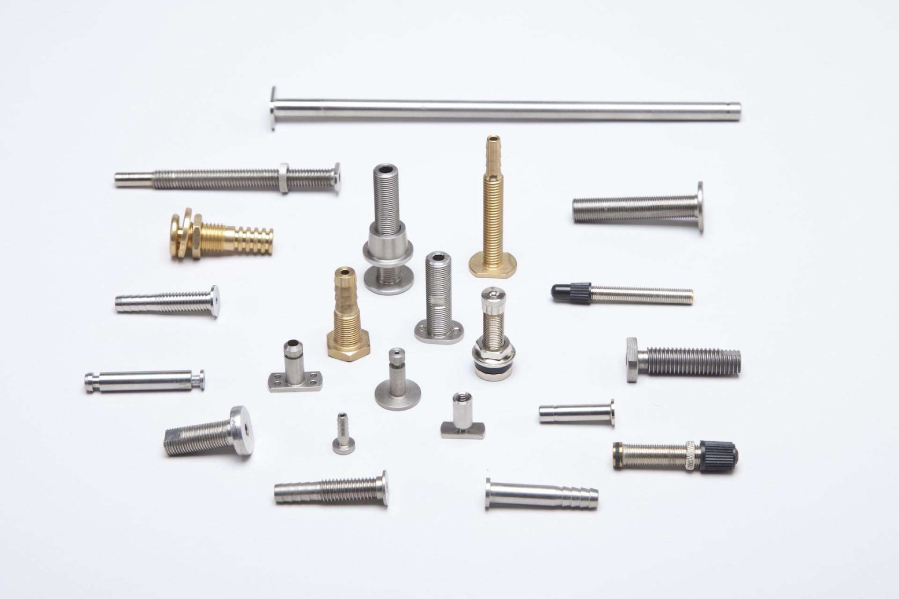

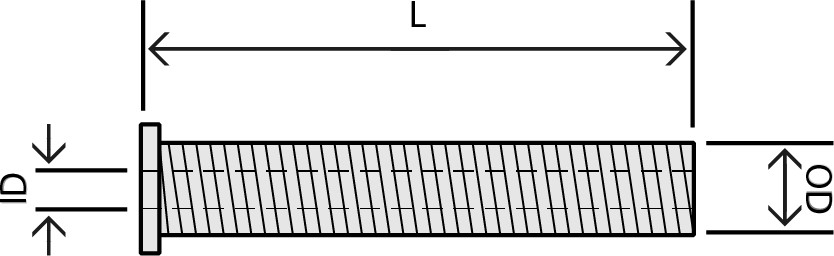

Threaded Valve (Brass)

I/D Thread L
3mm 1/8 bsp 40/100mm
2mm 6mm 30/50mm
3mm 8mm 40/65/100mm

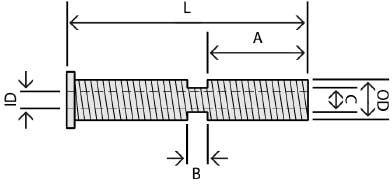

Threaded Valve with Wrench Flat (Brass)

I/D Thread L A B C
3mm 1/8mm 50.5mm 7.2mm 7.9mm 7.4mm
